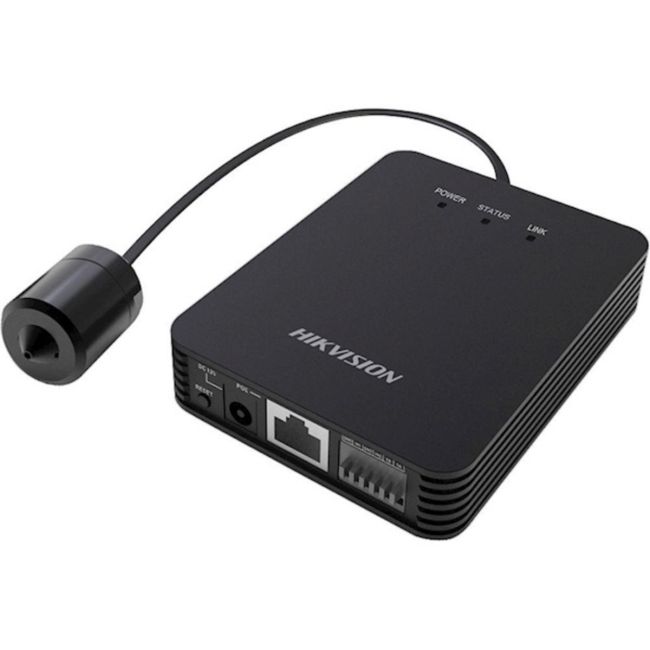

Hikvision 2MP Fixed Indoor Covert Cylinder Pinhole Network Camera
Hikvision pinhole cameras have been specially developed to be easy to install and discreetly concealed. The lens and the main module are connected with an 8 meter cable. The compact size of the lens makes it easy to place and conceal from view. The main module can be placed elsewhere thanks to the intermediate cable
This covert camera is great for surviellance applications
- 1/3’’ progressive scan CMOS
- Up to 2MP resolution
- 120dB WDR
- ROI codec
- Onboard storage, up to 128GB
- Triple video streams
- Audio/Alarm IO
Specifications:
| Camera | |
|---|---|
| Image Sensor: | 1/2.8" Progressive Scan CMOS |
| Signal System: | PAL/NTSC |
| Min. Illumination: | Color: 0.005 Lux @(F1.2, AGC ON), 0.014 Lux @(F2.0, AGC ON) B/W: 0.0001 Lux @(F1.2, AGC ON), 0.0003 Lux @(F2.0, AGC ON) |
| Shutter time: | 1 s to 1/100,000 s |
| Slow shutter: | Yes |
| Lens: | 2.8 mm/3.7 mm/4.0 mm/6.0 mm |
| Lens Mount: | Pinhole |
| Adjustment Range: | Pin-hole: 2.8 mm @ F2.5, horizontal FOV 88.2° 3.7 mm @ F2.5, horizontal FOV 71° M12: 2.8 mm @ F2.0, horizontal FOV 104° 4.0 mm @ F2.0, horizontal FOV 80° 6.0 mm @ F2.0, horizontal FOV 50° |
| Day& Night: | Electronic |
| Wide Dynamic Range: | 120 dB |
| Compression Standard | |
| Video Compression: | H.265+/H.265/H.264+/H.264/MJPEG |
| H.264 code profile: | Baseline Profile/Main Profile/High Profile |
| Video bit rate: | 32Kbps~16Mbps |
| Audio Compression: | G.711/G.722.1/G.726/MP2L2/PCM |
| Audio bit rate: | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2) |
| Dual Stream: | Yes |
| Triple Streams: | Yes |
| Image | |
| Max. Image Resolution: | 1920 x 1080 |
| Sub Stream: | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
| Third Stream: | 50Hz: 1fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480, 640 × 360, 352 × 288, 320 × 240) 60Hz: 1fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480, 640 × 360, 352 × 240, 320 × 240) |
| Image Enhancement: | BLC, 3D DNR |
| Image Settings: | Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser |
| Target Cropping: | No |
| BLC: | Support |
| 3D DNR: | Support |
| ROI: | 1 fixed region for main stream and sub stream |
| Picture Overlay: | No |
| Day/Night Switch: | Day/Night/Auto/Schedule/ Triggered by Alarm In |
| Network | |
| Network Storage: | microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR |
| Alarm Trigger: | Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error |
| Protocols: | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
| General Function: | One-key reset, anti-flicker, five streams and up to 5 custom streams, heartbeat, password protection, privacy mask, watermark, IP address filter |
| System Compatibility: | ONVIF (Profile S, Profile G), ISAPI |
| Intelligent | |
| Behaviour analysis: | Line crossing detection, intrusion detection, unattended baggage detection, object removal detection |
| Interface | |
| Communication Interface: | 1 RJ45 10M/100M Ethernet port 1 VIN port 1 RS-485 |
| Audio: | 1 input, 1 output |
| Alarm: | 1 input, 1 output (up to 24 VAC, 1A or 110 VAC, 500mA) |
| Alarm Input: | 1 |
| Alarm Output: | 1 |
| On-board storage: | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Reset Button: | Yes |
| Audio | |
| Environment Noise Filtering: | Support |
| Audio I/O: | support |
| Audio Sampling Rate: | 8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz |
| Smart Feature-set | |
| Behaviour Analysis: | Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection |
| Line Crossing Detection: | Cross a pre-defined virtual line |
| Intrusion Detection: | Enter and loiter in a pre-defined virtual region |
| Unattended Baggage: | Objects left over in the pre-defined region such as the baggage, purse, dangerous materials |
| Object Removal: | Objects removed from the pre-defined region, such as the exhibits on display. |
| Recognition: | Face Detection |
| General | |
| Operation Condition: | -10 °C to 40 °C (14 °F to 104 °F), humidity: 5% to 95% (non-condensing) |
| Power Supply: | 12 VDC ± 20%, two-core terminal block, PoE: (802.3af, class 2) |
| Power Consumption: | 12 V DC ± 20%, 0.25 A, max. 3 W PoE: (802.3af, 36V-57V), 0.2A to 0.1A, Max: 3.5W |
| Dimensions: | Camera: 77.1 × 69 × 26 mm (3.04" × 2.72" × 1.02") With package: 254 × 164 × 130 mm (10" × 6.46" × 5.12") |
| Weight: | Camera: 87 g (0.19 lbs.) With package: 220 g (0.49 lbs) |
